| MOQ: | 1 |
| Fiyat: | US $3000.00 - 3500.00/ Set |
| Standart ambalaj: | Plastik kutu |
| Teslim süresi: | 10 |
| Ödeme yöntemi: | T/T |
| Tedarik kapasitesi: | Yılda 1000 set |

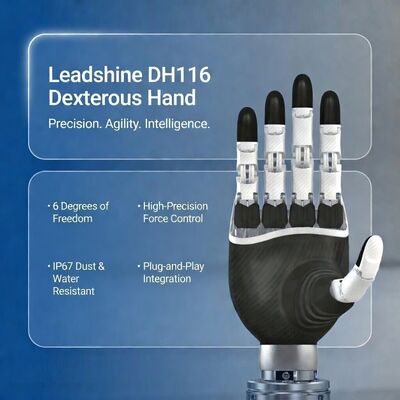

The Leadshine DH116 is a 5-finger dexterous robotic hand from the DH series. It features 6 active degrees of freedom + 5 passive, brushless coreless motors, planetary reducers, and hybrid force-position control. Designed for collaborative robots, humanoid hands and research/education platforms, it offers strong load capacity and perception at a competitive price point.
| Parameter | Specification |
|---|---|
| Total Degrees of Freedom | 11 (6 active + 5 passive) |
| Motors | Brushless coreless + planetary reducer |
| Communication | EtherCAT (100 MHz), CAN/RS485 compatible |
| Maximum Load (whole hand) | 40 kg |
| Maximum Load (single finger) | 10 kg |
| Gripping Life | > 100,000 cycles |
| Control Mode | FOC current loop + tactile feedback + force-position hybrid |
| Series | DH116 |
Please provide:
