Zhixing Collaboration Hand Series CTAG2F90 CTAG2F90-C CTAG2F90-D CTAG2F120 CTAG2F120S TM12 TM14 6 Axis Cobot Robot Arm

Ürünler

Zhixing Collaboration Hand Series CTAG2F90 CTAG2F90-C CTAG2F90-D CTAG2F120 CTAG2F120S TM12 TM14 6 Axis Cobot Robot Arm

MOQ:	1
Fiyat:	US $22000.00 - 25000.00/ Sets
Standart ambalaj:	Karton kutu/Ahşap sandık
Teslim süresi:	6~8 hafta
Ödeme yöntemi:	T/T
Tedarik kapasitesi:	Yılda 200 set

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri

Marka adı

Techman Robot

Model numarası

TM12 / TM14

Gerilim:

110-240 VAC

Maksimum yük:

12kg / 14kg

Tipik Hız:

1,1 m/s

Tekrarlanabilirlik:

±0,1 mm

Güç Kaynağı:

100-240VAC,50-60Hz

IP sınıflandırması:

IP54(Robot Kolu);IP32(Kontrol Kutusu);IP40 (robot çubuğu)

Ulaşmak:

1100mm

Maksimum hız:

Özgürlük dereceleri:

6 döner mafsal

Min sipariş miktarı:

Fiyat:

US $22000.00 - 25000.00/ Sets

Ambalaj bilgileri:

Karton kutu/Ahşap sandık

Teslim süresi:

6~8 hafta

Ödeme koşulları:

Yetenek temini:

Yılda 200 set

Ürün Tanımı

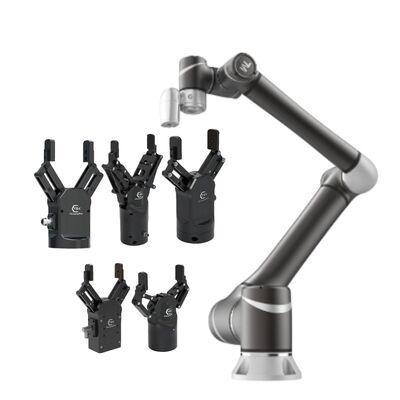

Techman TM12 AI Cobot + Zhixing Collaborative Hand Series

Product Overview

The Techman TM12 is a 6-axis collaborative robot with 12 kg payload and 1300 mm reach. It features built-in vision system for object recognition and positioning. When equipped with Zhixing (Zhixing Robotics) collaborative hand series (dexterous or gripper hands), it becomes a complete solution for precise, vision-guided handling tasks. This combination is used in automation lines requiring safe human-robot interaction and flexible gripping.

Features

Built-in 5MP vision camera and AI processing
12 kg payload with 1300 mm reach
TMflow drag-and-drop programming
Safety-rated collaborative design (ISO/TS 15066)
Zhixing hand integration for dexterous or adaptive gripping
Hand-guiding teaching mode
No external PC needed for vision tasks

Technical Specifications

Payload: 12 kg
Reach: 1300 mm
Degrees of Freedom: 6 axes
Repeatability: ±0.05 mm
Maximum Speed: 4 m/s (joint speed)
Vision: Integrated 5MP color camera, 1.5 m × 1.5 m working area
IP Rating: IP54
Power Consumption: ~300 W average
Zhixing Hand Compatibility: Supports multiple gripper/hand series

Applications

Vision-guided pick and place
Machine tending with flexible gripping
Assembly and screw driving
Packaging and palletizing
Collaborative tasks in manufacturing

Q: Does TM12 need external vision?

A: No – vision is fully built-in.

Q: Can Zhixing hand be integrated?

A: Yes – compatible with Zhixing collaborative hand/gripper series.

Phone/WeChat/WhatsApp:+8615121023088
